Cold Rolled Coils

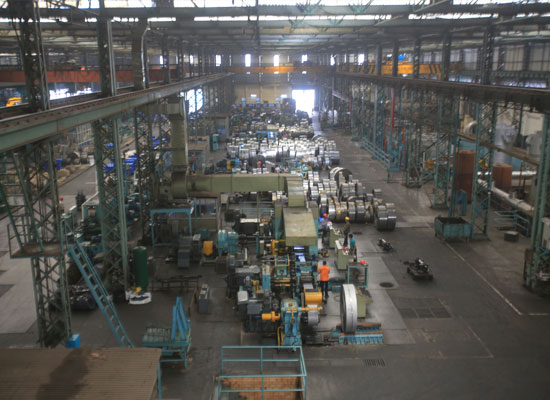

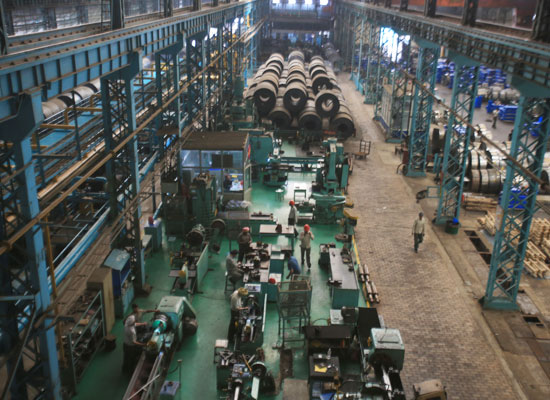

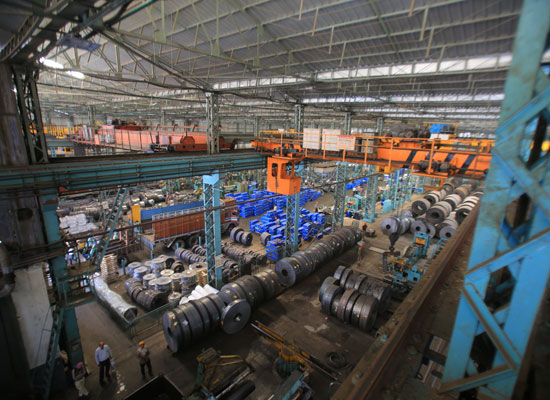

Avon Ispat & Power Limited is one of the top-notch and leading manufacturers of Cold Rolled coils in the northern part of the country. We make coils by using the latest technology and ultra modern and highly advanced equipment.

End applications of Cold rolled coils/sheets :-

  • Precision Tubes
  • Bicycle / auto rims / Bicycle Components
  • Deep / Extra deep drawn auto components for auto sector
  • Material handling system
  • White goods sector
  • Furniture & office equipment
  • Blades, Knives & Springs
  • Bicycle and Auto Parts

Various grades rolled along with their specifications and dimensional tolerances are detailed as under

WIRE FLATTING MILLS No. (2)

We have a set up to flat the HB wire, which has further various industrial uses. We are already catering to the requirement of many reputed companies for chain bush and chain bush roller.

PRODUCT SPECS. For Chain Roller & Chain Bush
Description Range Remarks
Width 2.20 to 9.50 mm
Thickness 0.50 to 1.20 mm

Product Application :

  • For Cycle chain Bush
  • For Cycle Chain Roller
  • For Tape measurement s
  • And for other various industrial applications.

The high-end quality control department that is equipped with the finest equipment for testing raw material and finished goods are the hallmarks that govern the quality of the products rolled out of the completely automatic mills.

STEEL GRADES

Grade C% Mn% S% P% Al% Si Nb% Hardness UTS YS EL%
Max Max Max Max Min/Max Max Min Max(Hv) KG/MM2 min kg/MM2 Min
Semi Killed 0.05 to 0.11 0.35 to .50 0.05 0.05 0.008 MAX 0.08 ---- 110 TO 135 --- --- ---
D 0.10 0.50 0.05 0.05 0.02 TO 0.06 0.02 --- 115 28 25 MAX 34
DD 0.08 0.40 0.05 0.05 0.02 TO 0.06 0.02 --- 105 28 25 MAX 35
EDD 0.06 0.35 0.05 0.05 0.02 TO 0.06 0.02 --- 85 TO 95 28 23 MAX 36
MC-11 or C-40 0.35 TO 0.45 0.60 TO 0.90 0.05 0.05 --- --- ---- 220 TO 260 --- --- ---
MC-12 or C-55 0.50 TO 0.60 0.60 TO 0.90 0.05 0.05 --- --- ---- 160 --- --- ---
C-62 0.59 TO 0.67 0.60 TO 0.90 0.05 0.05 --- --- ---- 165 --- --- ---
HC-14 OR C-80 0.75 TO 0.85 0.50 TO 0.90 0.05 0.05 --- --- ---- 175 --- --- ---
ST-42 0.10 1.20 0.05 0.05 0.02 TO 0.06 0.02 --- 150 42 --- 30
SAPH-440 0.12 --- --- --- --- --- --- --- 44 --- 30
E-34 0.10 1.20 0.05 0.05 0.02 TO 0.06MIN 0.02 --- 150 --- 34 MIN 30
SAPH-590 0.15 1.80 0.05 0.05 --- --- 0.01 200 60 --- 14
HT-60 0.15 1.80 0.05 0.05 --- --- 0.01 200 60 --- 14
ST2k 60 0.15 1.80 0.05 0.05 --- --- --- 185 TO 225 59 TO74 52O MIN ---
Dimensional Tolerances
Dimensional Tolerances as per BIS or any Other international Standard or as per Customer's specifications can be supplied however Closer tolerances are supplied by Avon Ispat & Power Limited.
CR Strip Flattend Wire
Offered By AIPL Offered By ACIL
Thickness in mm 0.20 TO 0.50 ±.02 Thickness in mm 0.50 TO 1.15 ±.02
0.51 TO 1.50 ±.02
1.51 TO 4.50 ±.03
With (Slitted) in mm Up TO 100 ±.10 Width in mm 2.20 TO 5.80
5.81 TO 9.00
±.05 ±.10
100 TO 200 ±.15
200 TO 460 ±.20
Unlistted in mm ± 6 , - Nill
Length in mm Upto 500 +1, - Nill
above 500 +2,- Nil
Camber Coils 2 per Mtr Camber Coils 6 MM Per Mtr

Size Range

CR Strips Flattened Rolled & Bush Wire Surface - Bright / Rough / Matt / Edges-slitted
Thickness in mm CR - 0.20 to 4.30
HROP up to 6.00
0.50 to 1.15 Surface - R.P Oiled / Dieseled / Without Oil Packing - Stretch filling /
Hessian Cloth packing is available on
special demand VCI paper is also available
for Coils and CTL sheets.
Width in mm 11 to 460 2.20 to 9.00
Coil ID in mm 400 and 500 400
Coil OD in mm Up to 9 kg Per mm AS REQUIRED
Length of CTL in mm 250 to 3000 Coil Width 100
